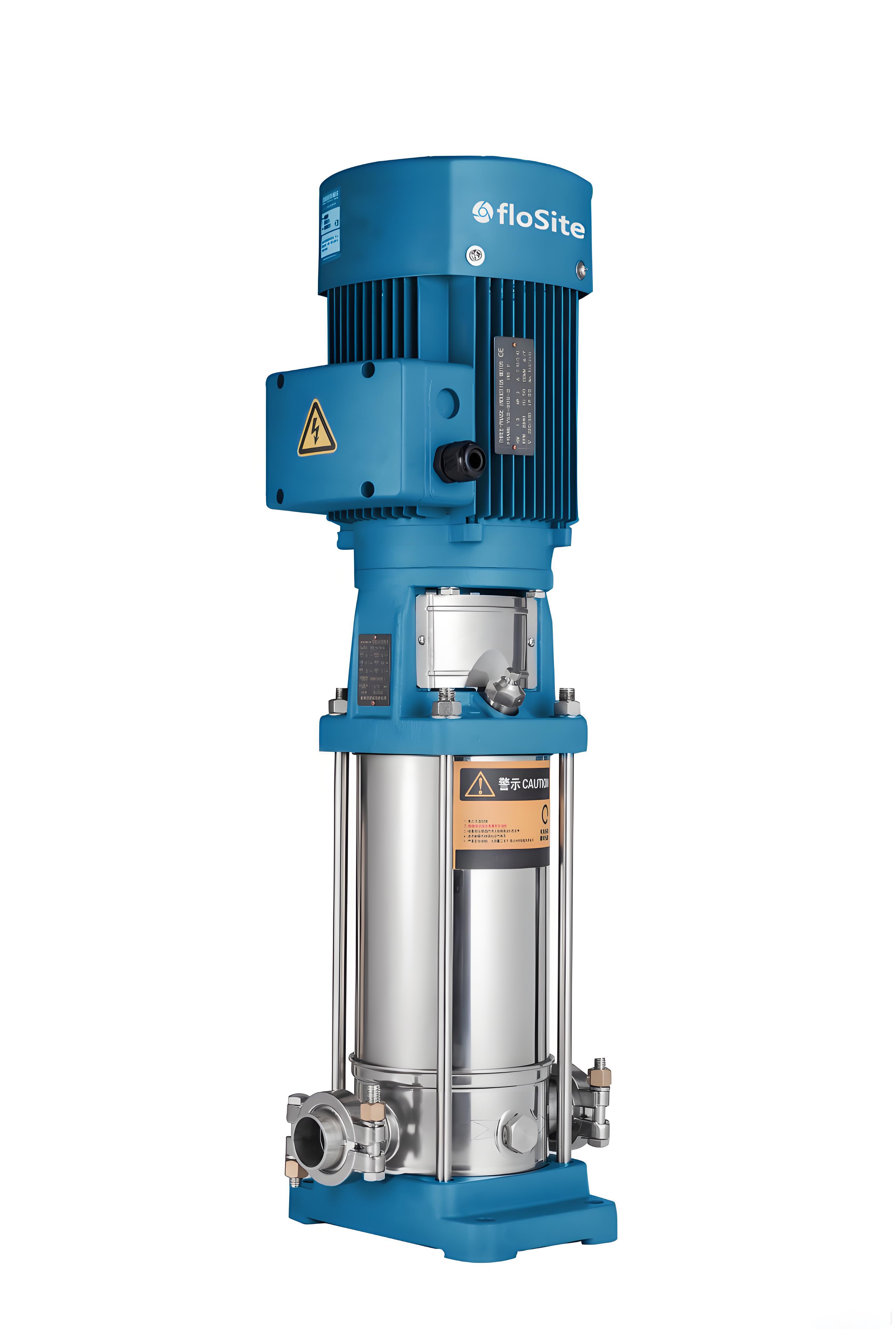

FLOSITE Q-VMS Series: The Tool-Free, Quick-Connect Vertical Multistage Pump

Introduction: Unparalleled Installation Speed Meets Industrial Performance

Meet the FLOSITE Q-VMS Series, a revolutionary quick-connect multistage pump that redefines ease of use without compromising power. Designed for applications requiring flexibility and fast setup, this stainless steel vertical pump features stainless steel quick-connect ports that allow for tool-free installation and movement in minutes. Every wetted part is constructed from durable AISI 304 stainless steel, ensuring exceptional corrosion resistance for long-lasting durability in demanding environments. Combined with a hydraulically optimized design for high efficiency and the option of an IE4 super premium efficiency motor (delivering ~3% more savings), the FLOSITE Q-VMS is the smart, adaptable, and powerful solution for a vast range of commercial and industrial duties.

Where It Works: The Ultimate Flexible Pump Solution

The FLOSITE Q-VMS is engineered for scenarios where speed, cleanliness, and flexibility are critical. Its quick-connect design makes it ideal for:

· Mobile or Temporary Setups:

  · Rental equipment applications, emergency water supply, and temporary pressure boosting.

  · Seasonal irrigation systems or construction site dewatering.

· Water Treatment & Filtration:

  · Rapid connection for reverse osmosis (RO) systems, ultrafiltration skids, and pilot testing units.

  · Water softening, deionization, and filtration systems requiring easy maintenance access.

· Cleaning & Washdown Applications:

  · Industrial cleaning systems for parts, vehicles, and food processing areas.

  · Commercial dishwasher connections and washdown stations where hoses are frequently changed.

· HVAC & Building Services:

  · Temporary cooling tower bypass, seasonal system hookups, or quick integration into HVAC pump loops.

  · Fast connection for pressure boosting units in buildings and hotels.

· Agriculture & Fluid Transfer:

  · Portable irrigation units, greenhouse misting systems, and fluid transfer operations.

Key Features & Benefits: Designed for the Real World

· Revolutionary Quick-Connect Design: The stainless steel quick-connect ports enable installation without tools. Connect or disconnect hoses in seconds, drastically reducing setup time, labor costs, and the need for specialized personnel.

· Powerful & Efficient Performance: Don’t let the easy setup fool you. This pump delivers a high head up to 260m and a large flow rate up to 160 m³/h to meet demanding system requirements, all while operating with optimized energy efficiency.

· Durable & Corrosion-Resistant Construction: Built entirely with 304 stainless steel wetted parts and stainless steel quick-connects, the pump offers superior resistance to rust and corrosion, ensuring reliability with water and many clear, thin fluids.

· Maximum Flexibility & Portability: Easily move and reposition the pump as your needs change. The quick-connect pump design is perfect for non-permanent installations, maintenance bypass, or multi-point use.

· Wide Operational Range: Capable of handling fluids within a broad temperature range from -30°C to 120°C, suitable for various applications from cold water to hot liquid circulation.

· Space-Saving & Simple Installation: The in-line port configuration (suction and discharge on the same axis) allows for a compact footprint. The quick-connects eliminate the need for complex piping, flanges, or wrenches.

Technical Specifications

Feature Specification

Product Series FLOSITE Q-VMS (Quick-Connect Vertical Multistage)

Type Vertical, Multistage, Centrifugal Pump

Port Connection Stainless Steel Quick-Connect (Tool-Free)

Wetted Parts Material AISI 304 Stainless Steel

Max. Head Up to 260 meters

Max. Flow Rate Up to 160 m³/h

Liquid Temperature -30°C to +120°C

Max. Working Pressure Up to 16 bar (Standard, dependent on connection rating)

Motor Option Standard or Optional IE4 Super Premium Efficiency Motor

Choose FLOSITE Q-VMS for Unmatched Convenience

The FLOSITE Q-VMS Series is the definitive answer for professionals who value their time and demand performance. It bridges the gap between industrial-grade hydraulic performance and plug-and-play convenience. Reduce your operational complexity, increase your deployment speed, and invest in durable efficiency.

Stop wasting time with tools and complex connections. Get the pump that’s ready when you are.

Parameters：

Model	FST1-K	FST3-K	FST5-K	FST10-K	FST15-K	FST22-K
Power (kw)	0.37-2.2	0.37-3	0.37-5.5	0.75-11	1.1-15	1.1-18.5
Flow Range(m³/h)	0.7-2.4	1.2-4.4	2.4-8.5	5-14	8-24	11-29
Head Max.(m)	230	250	250	250	250	260
Max. Efficiency(%)	50	60	70	71	72	73
Fluid Temp.( °C)	-30~+120	-30~+120	-30~+120	-30~+120	-30~+120	-30~+120
